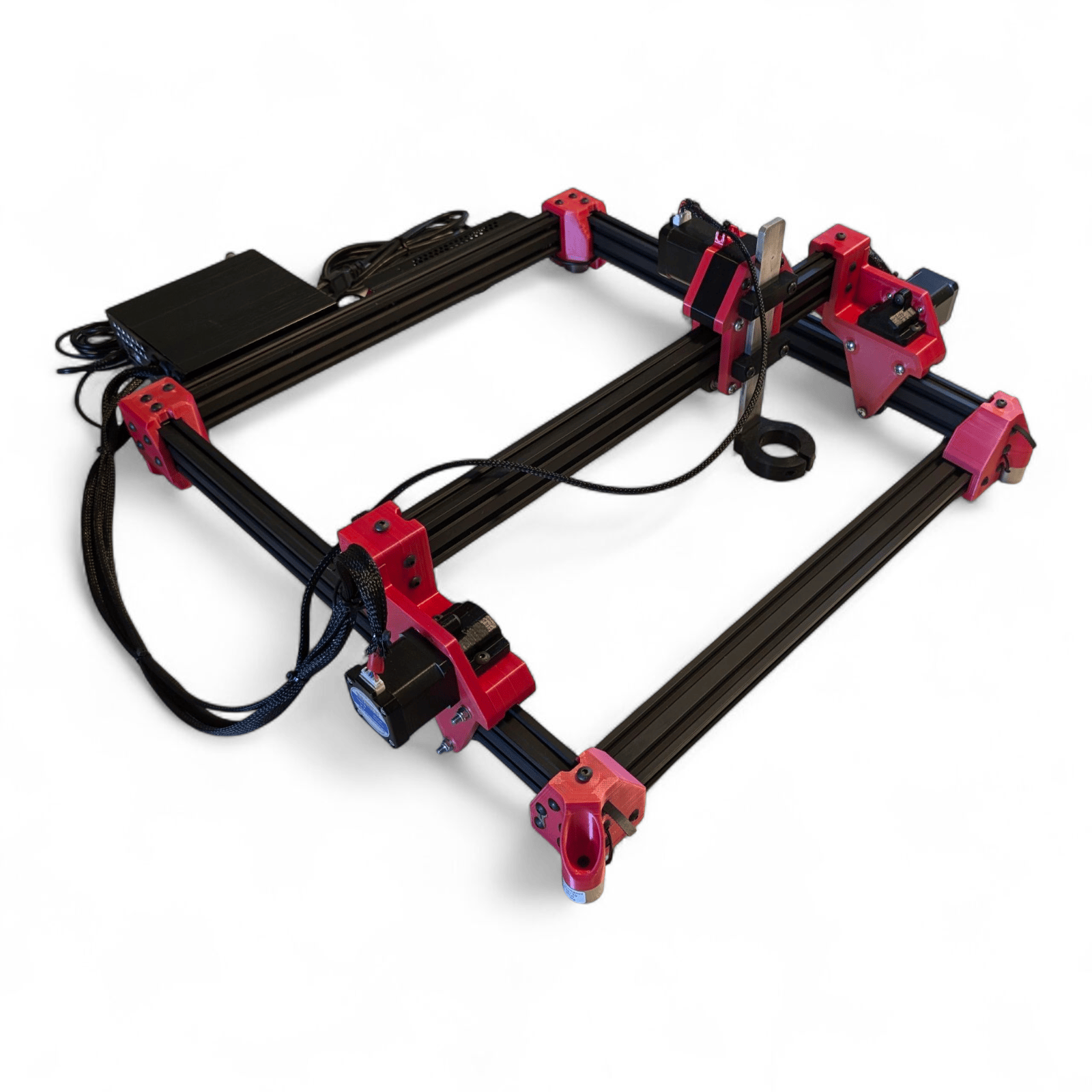

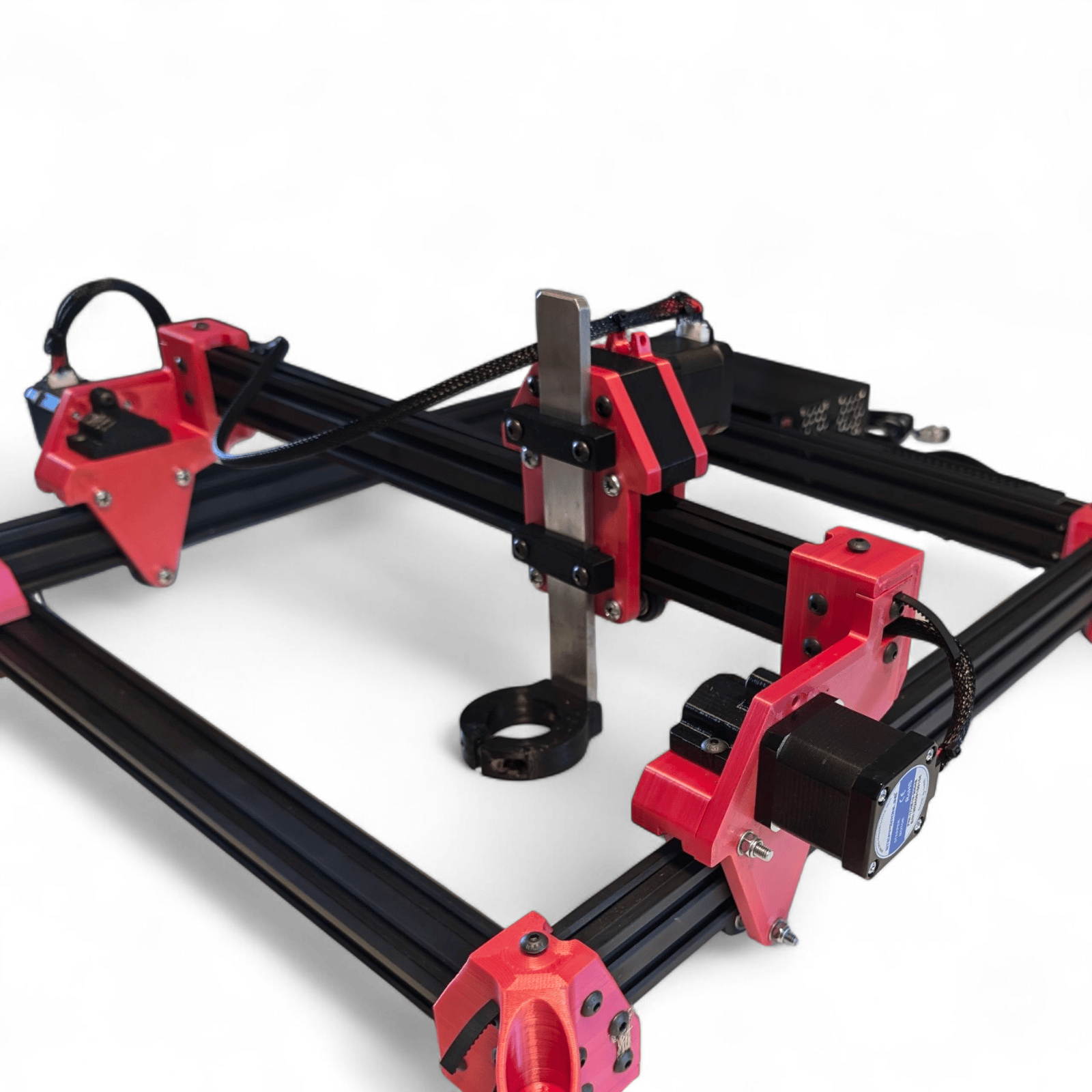

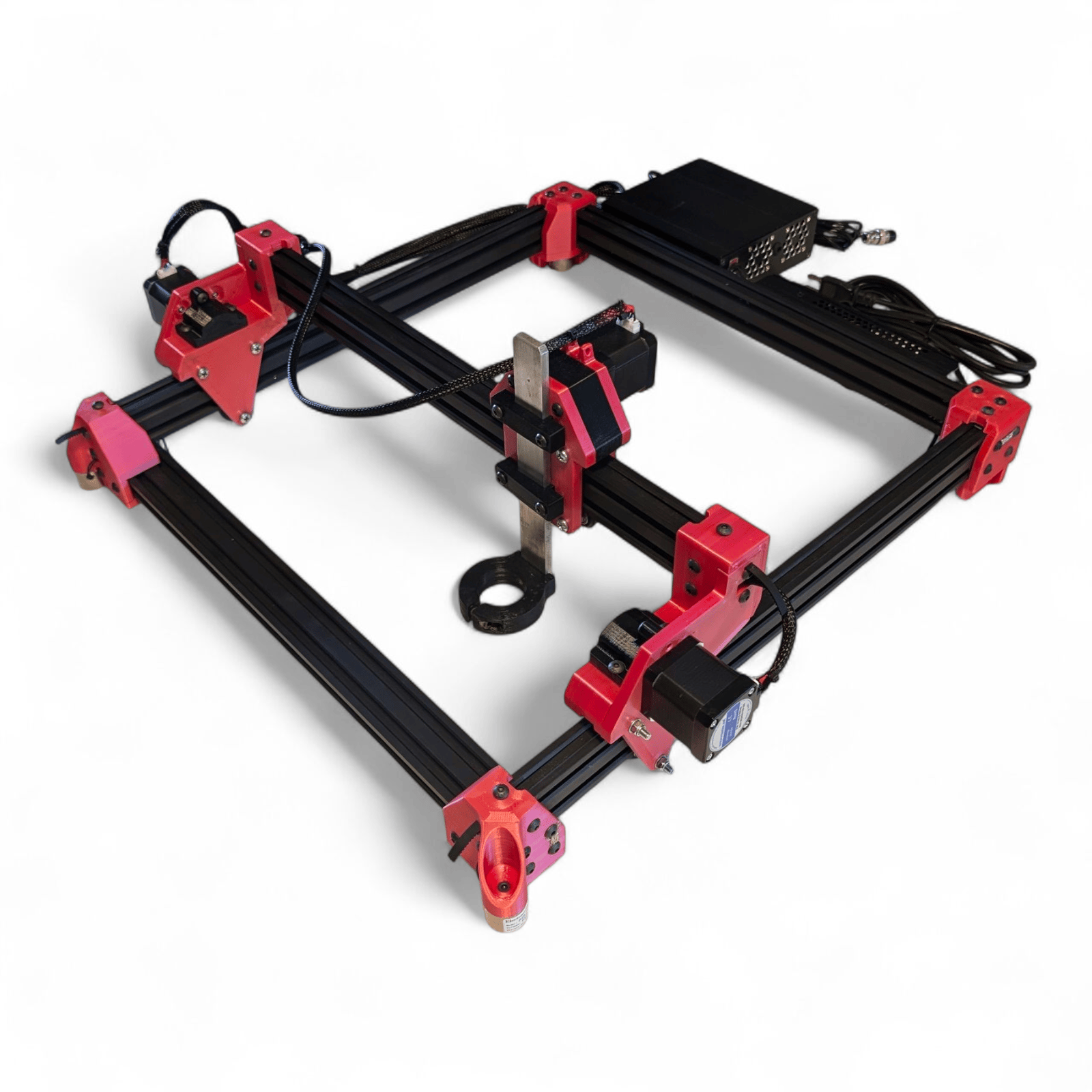

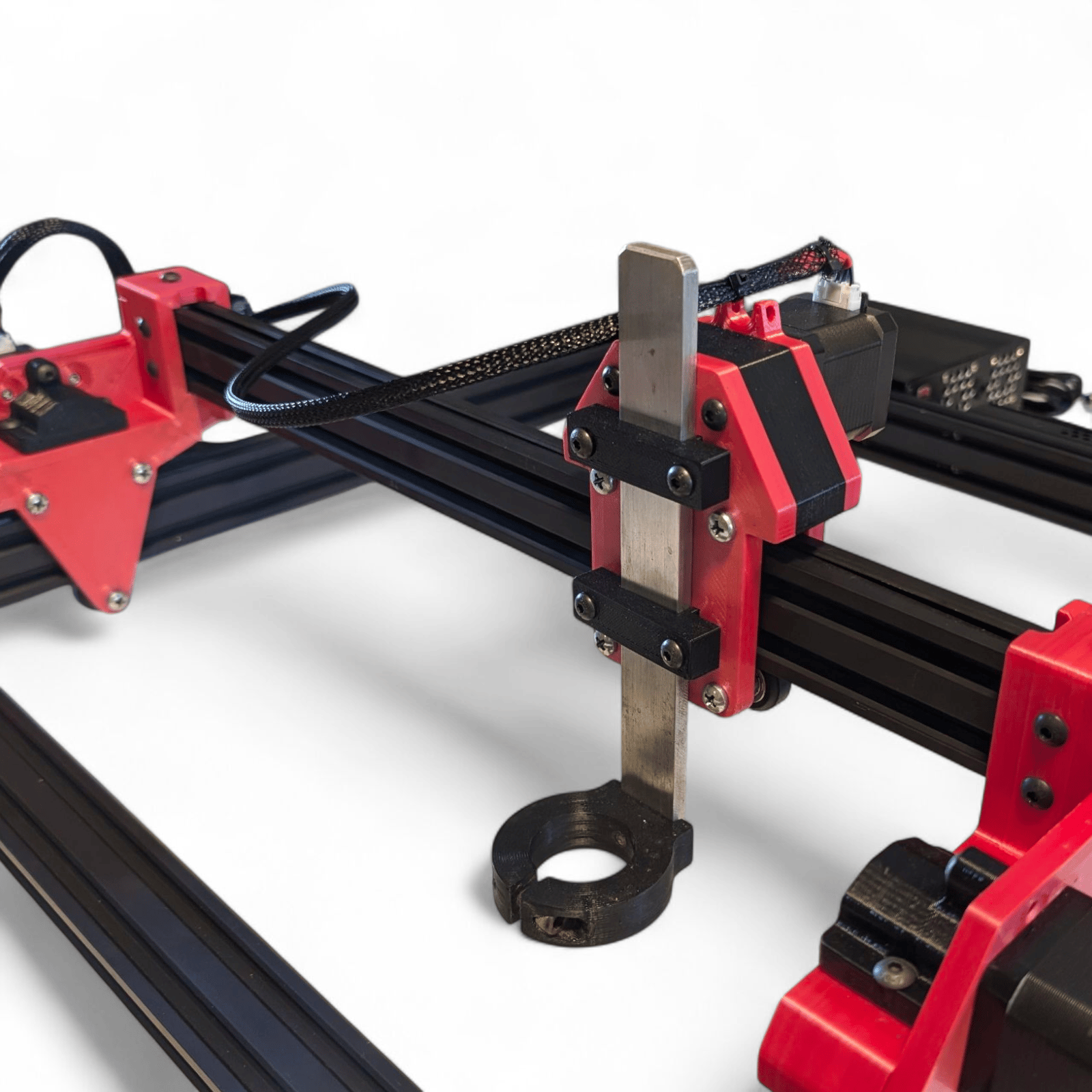

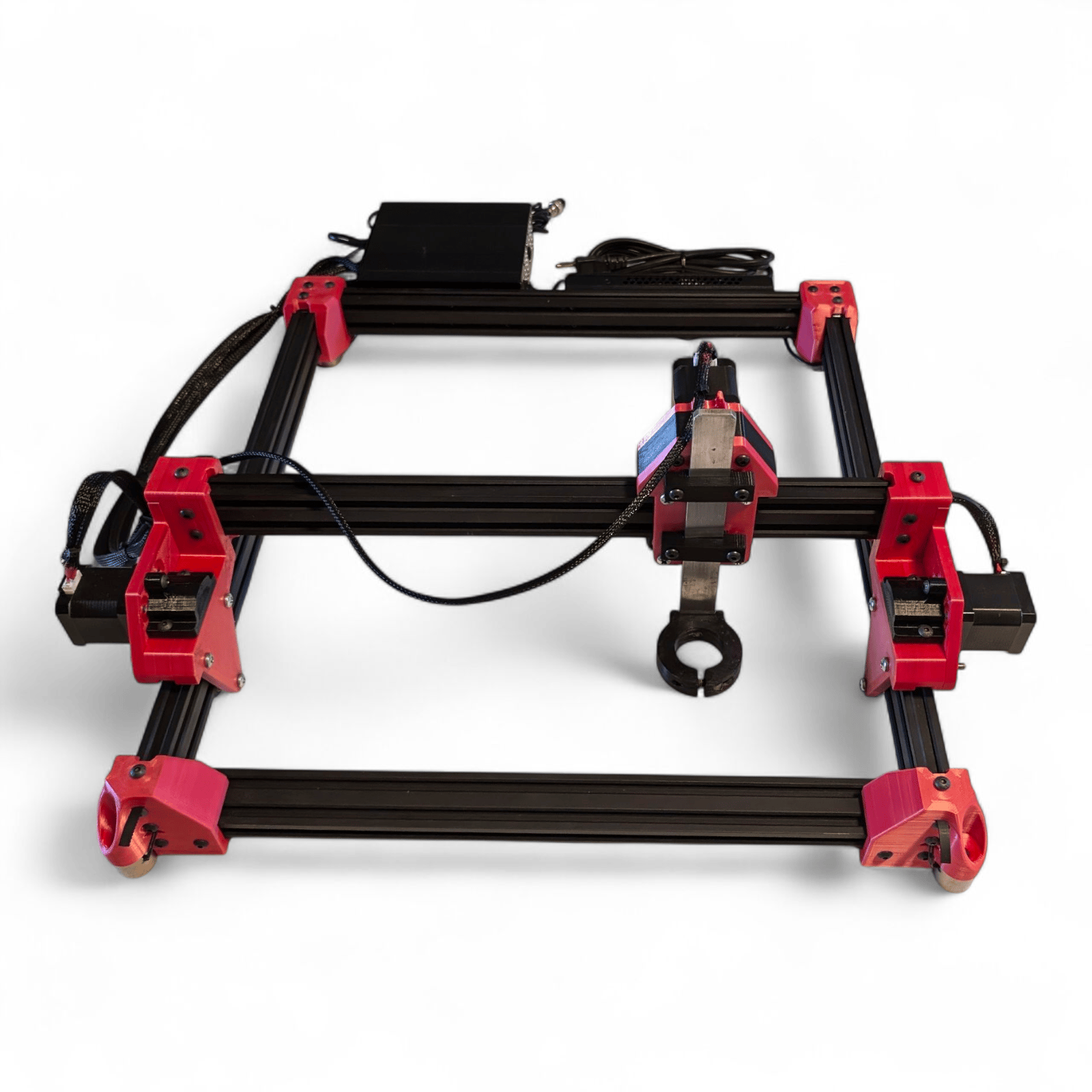

Mini CNC Plasma Cutter

Mini design requires 3D printer to complete
****JD's Garage does not plan to sell 3D printed parts for this project****

*Estimated cost to build $200-$250 depending upon options
*Complete system cost with plasma cutter $400
*Cutting dimensions 375mm x 390mm (14-3/4" x 15-3/8")
*Max speeds 650mm/sec
*Max acceleration 4000mm/sec^2
*Utilizes 20x40mm aluminum extrusion, no cutting required
*Electro magnet feet to hold the machine securely to the metal

Plans contain the following:
*stl files for 3D printing required parts
*Full bill of materials list that includes everything needed to complete the project including links for where to buy everything, Mainly Amazon
*Links to 2 plasma cutters under $170 that have been tested to work with this CNC machine.
*Recommended controller comes with firmware pre-installed, no flashing required
*Over 100 pages of instructions to build and operate your machine
*Plans for option base with slats for holding your metal
*Simplified wiring. Only 7 circuits required to be routed and wired. The rest have connectors that simply plug into the labeled control board.

Plans are online access only!
