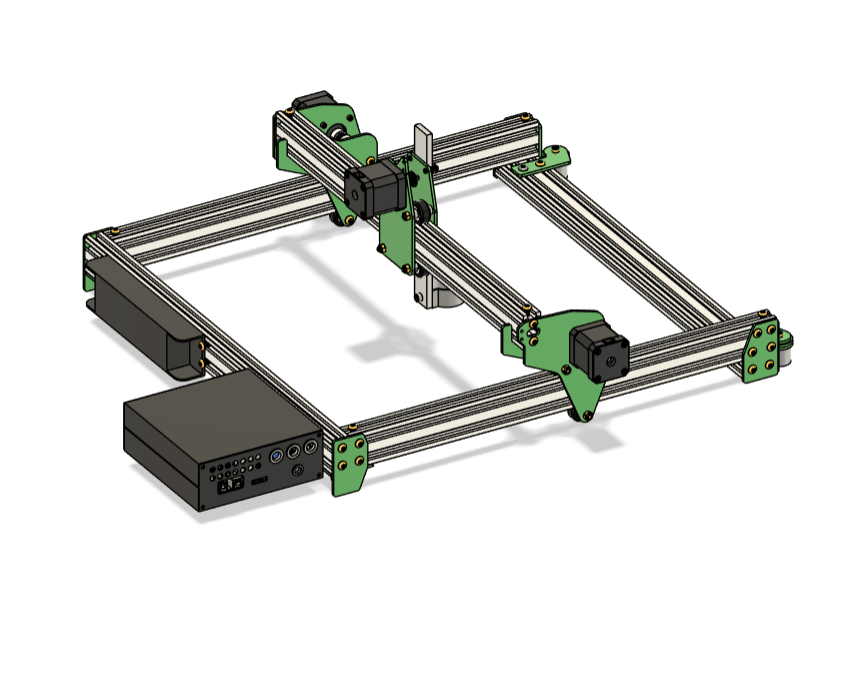

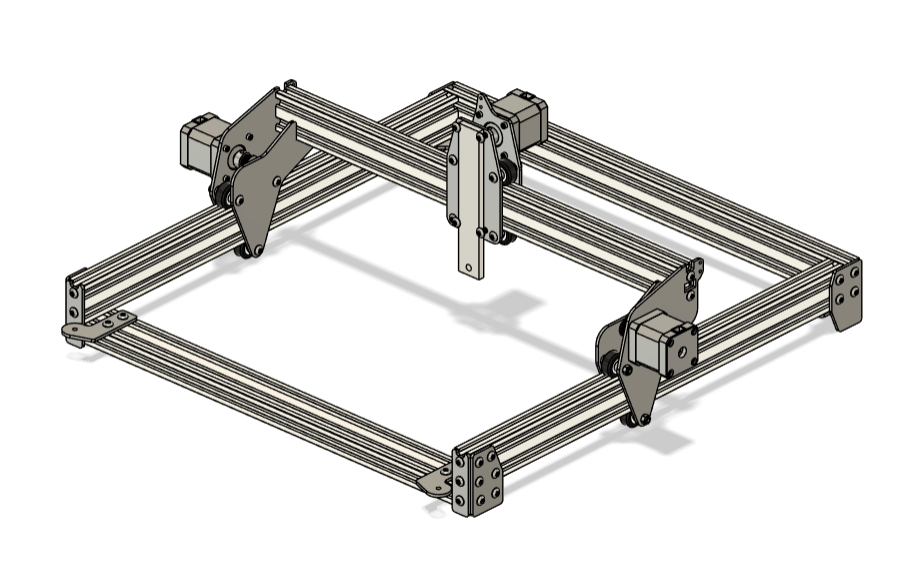

Mini CNC Plasma Cutter-All Metal Version

No 3D printing required for this product

*****Approximate release date of November 15th*****

*****You will have the options to add the Precut Metal plates to the Plan purchase for a $10 Discount*****

*****After extensive testing, we have concluded that there are several limiting factors that limit the maximum size of the build to what is listed below*****

*Estimated cost to build $200-$275 depending upon options
*Complete system cost with plasma cutter $400
*Cutting dimensions 375mm x 390mm (14-3/4" x 15-3/8")
*Max speeds 650mm/sec
*Max acceleration 4000mm/sec^2
*Utilizes 20x40mm aluminum extrusion, no cutting required

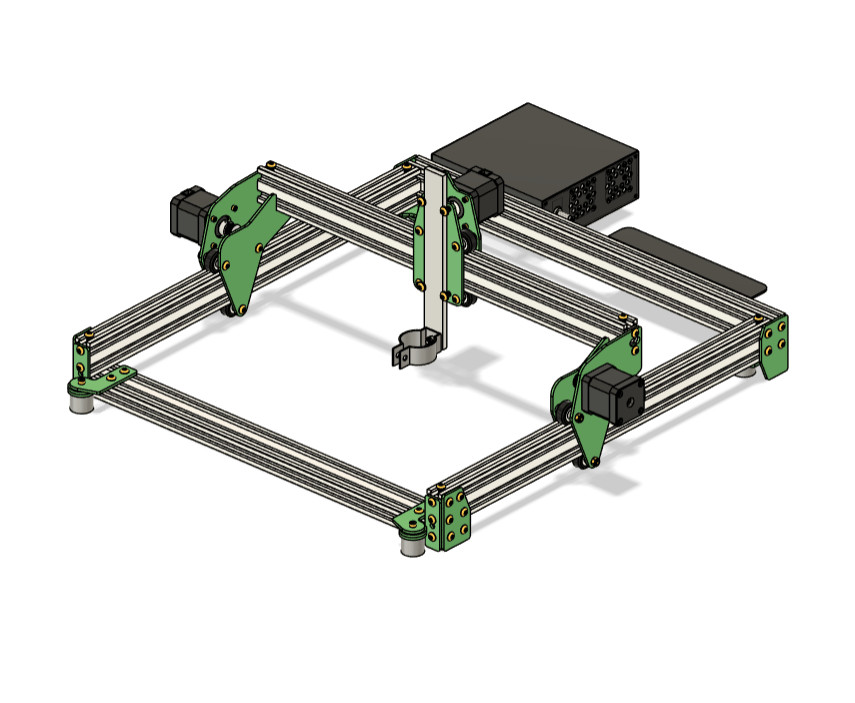

*Electro magnet feet to hold the machine securely to the metal

Plans contain the following:
*.dxf files for metal parts
*Full bill of materials list that includes everything needed to complete the project including links for where to buy everything, Mainly Amazon
*Links to 2 plasma cutters under $170 that have been tested to work with this CNC machine.
*Recommended controller comes with firmware pre-installed, no flashing required
*Over 100 pages of instructions to build and operate your machine

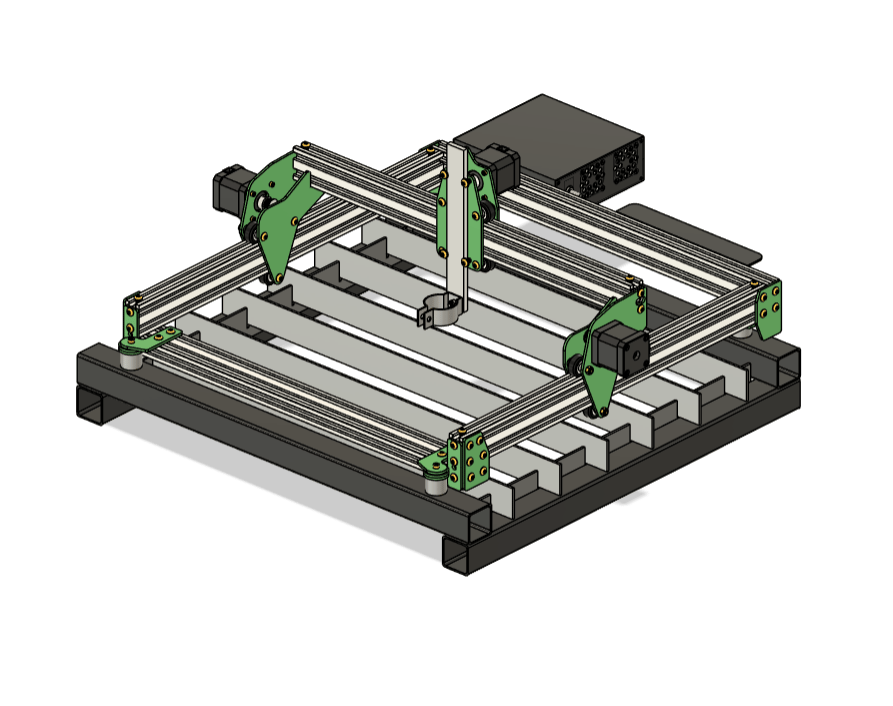

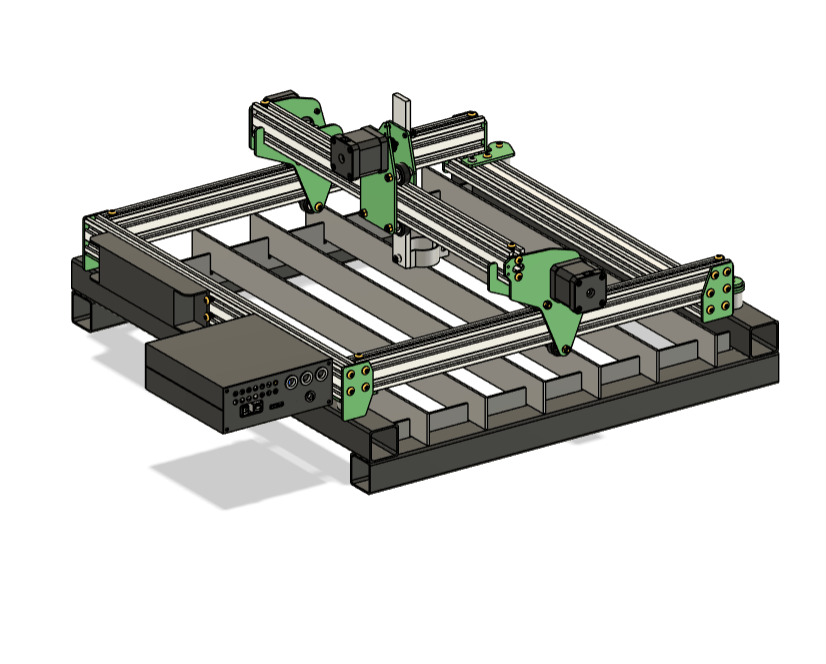

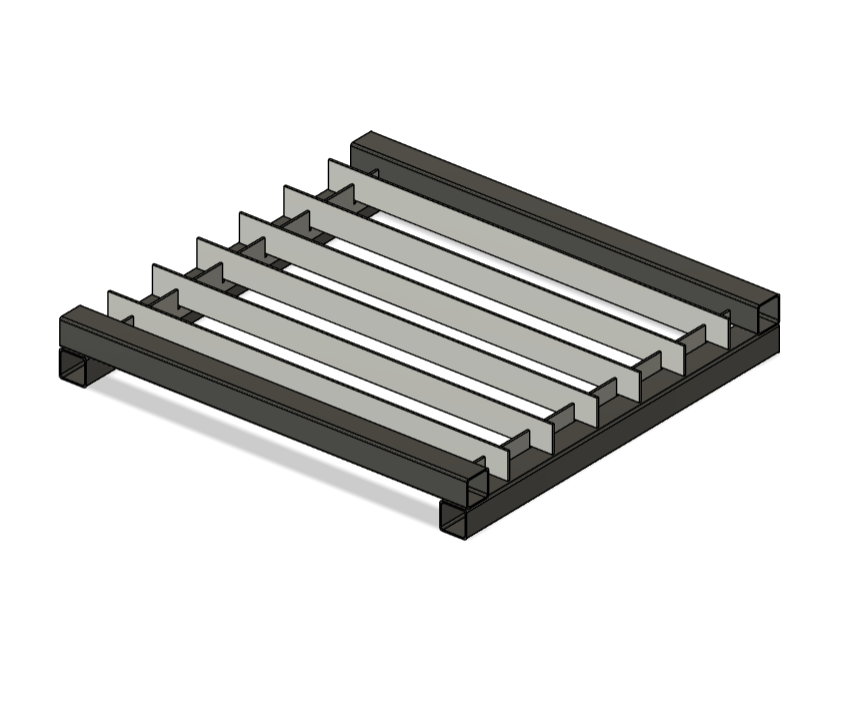

*Plans for optional base with slats for holding your metal
*Simplified wiring. Only 7 circuits required to be routed and wired. The rest have connectors that simply plug into the labeled control board.

*Parts required to complete the CNC build are available world wide

For trouble free operation, a low frequency blow back start plasma cutter is required

Plans are online access only!
