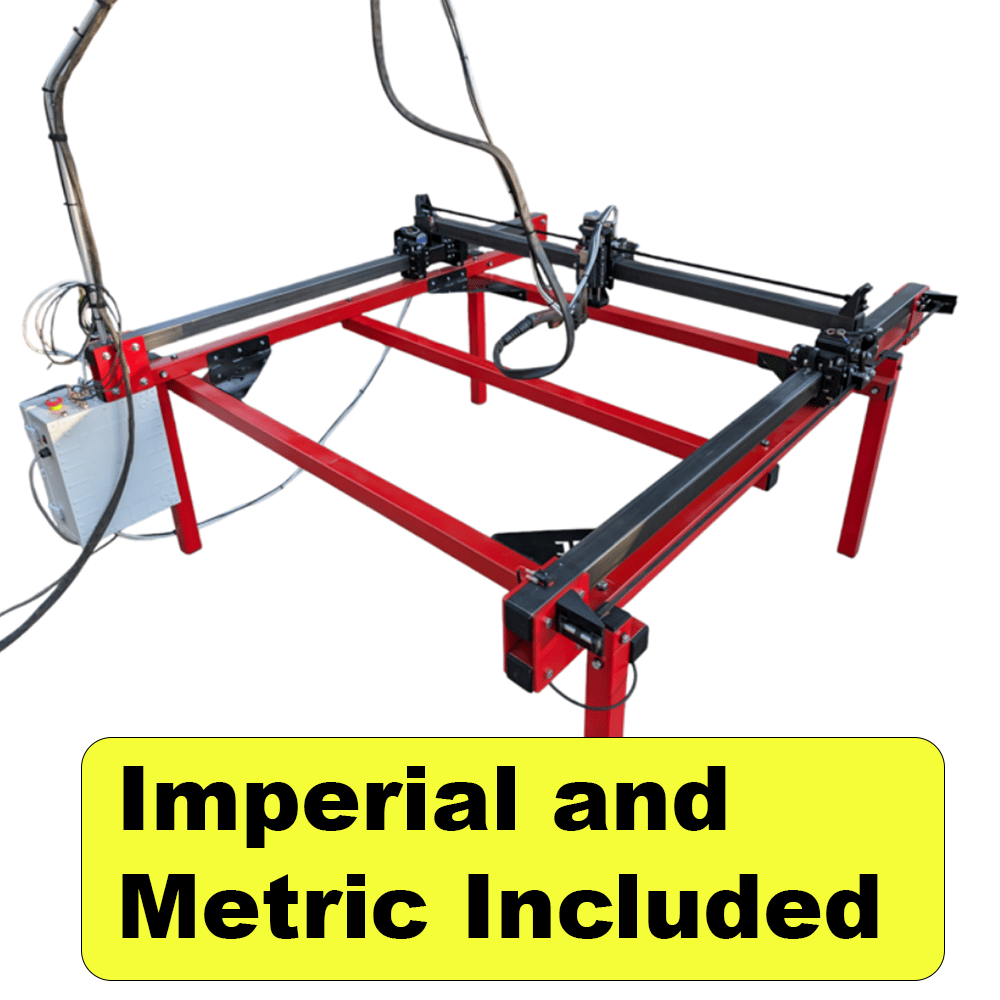

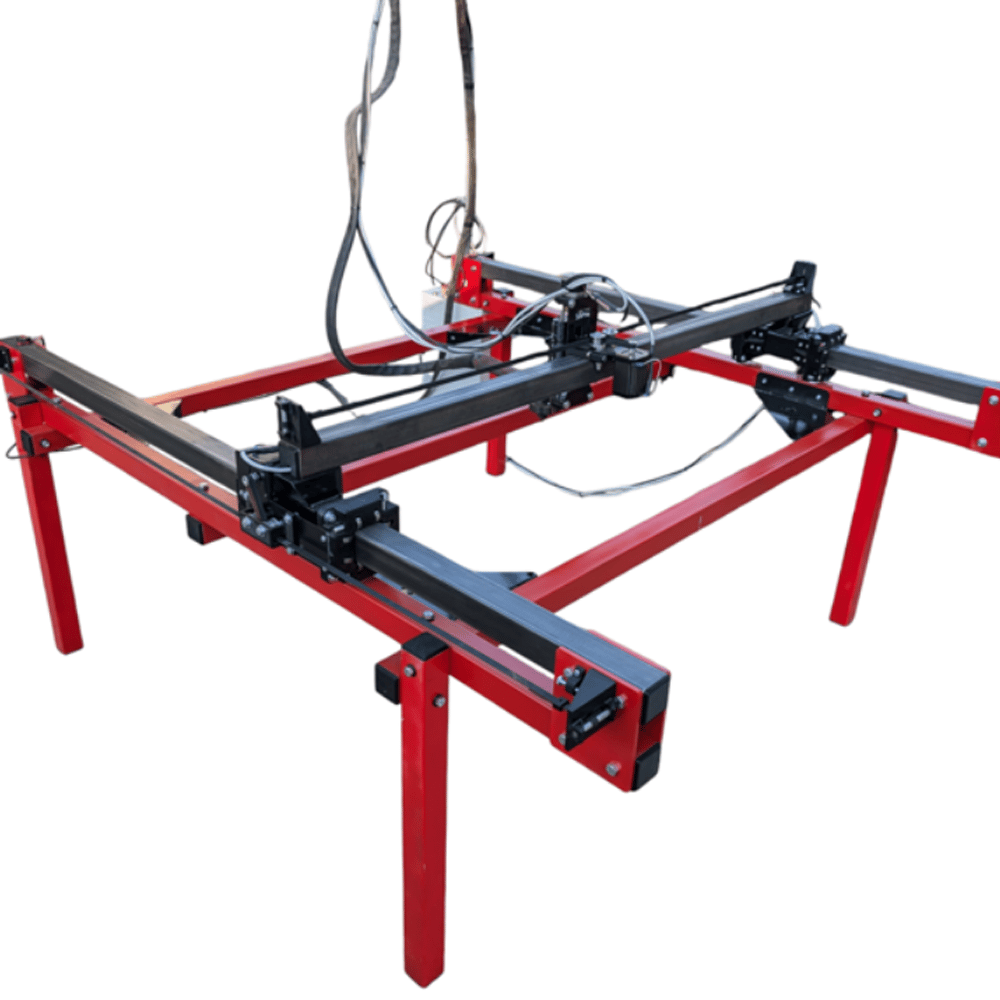

XL CNC Plasma Table Plans, includes .stl files for 3D printing

XL with flexible cutting dimensions from 24"x48" to 60"x120"

*****This product is online access only*****

*****Metric plan should be available during week of November 4th*****

*****3D printed parts and Precut steel plates coming soon*****

This is a set of plans to build a 3 axis budget CNC plasma cutter using metal tubing and 3D printed parts. Plans include 3 dimensional drawings of all parts, .stl files for 3D printed parts and a complete bill of materials list to complete this project. Open source firmware and software will need to be loaded onto the ESP32 to complete the electrical function of the machine. This process is detailed in the instructions.

FEATURES
*Over 180+ pages of instruction
*Built in dimension calculator to adjust to your desired build size
*Higher torque on X, Y and Z axis and cooler motor temperatures than other JDG designs
*Dual Y motors with independent drives
*Auto Squaring function on the Y axis

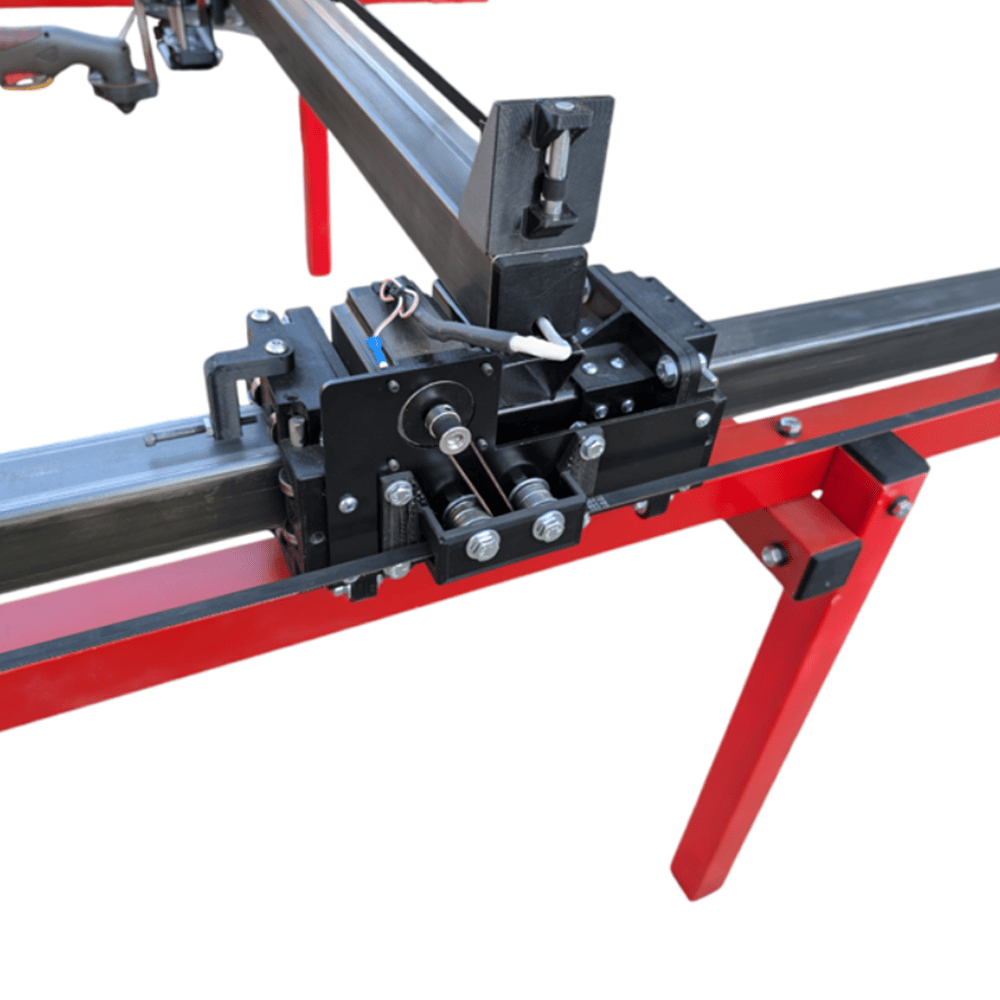

*Double supported bearings on the Y axis belt drive

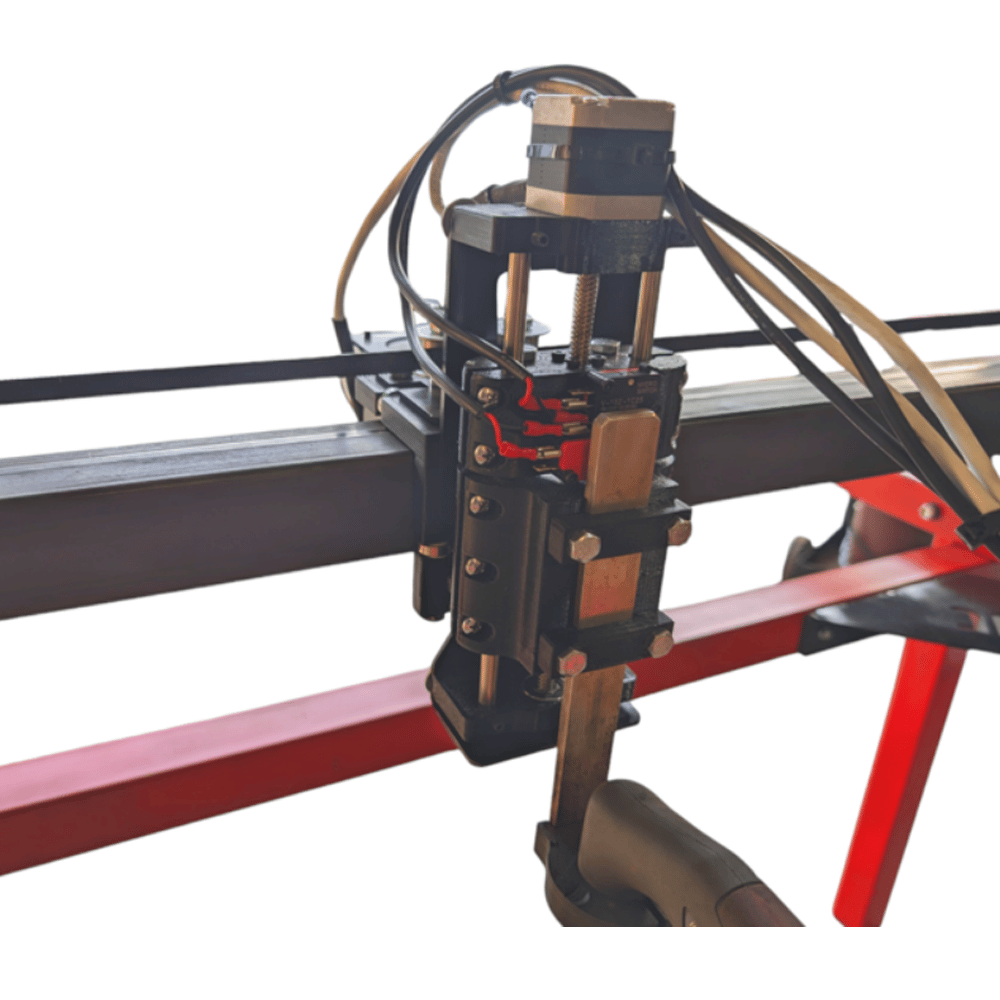

*Updated Floating Z axis with longer stroke and more bearing support
*ESP32 controller running on 48 volts with WIFI or BlueTooth
*Homing switches on X, Y1, Y2 and Z axis with the ability to set hard limits
*All wires leaving the control box are Opto-Isolated to eliminate EMI Noise
*Detailed control box assembly instructions

Will be added at a later date:
*Rotary Axis for tube notching and other processes.

Follow YouTube channel for more information on this build. https://www.youtube.com/watch?v=lhejn2-bwxc&list=PLWACT6mAqAyVz0Aqc3zoBX9DPsVudicCc

Estimated cost of completion is $700 to $1,100 depending upon options added

JDG Torch Height Controller is highly recommended to get the most out of this build

For trouble free operation, a low frequency blow back start plasma cutter is necessary.

Warning: This is not an industrial machine and not intended to be used in a production shop. It is intended for light use by a homeowner or hobbyist.
